Darley systems enhance King Street Wharf

At Sydney's bustling Darling Harbour, a new architectural feature graces the King Street Wharf precinct — a series of glass awnings that blend structural precision with visual elegance.

The award-winning installation was brought to life through the expertise of Magic Glass, who turned to Darley Aluminium for the aluminium roofing sections and capping solutions.

A bespoke design for a landmark location

Developed in collaboration with PMDL Architecture + Design and Mainbrace Construction, the awning system was fabricated by Magic Glass using more than 1,600m² of digitally-printed, heat-strengthened glass with purpose-designed aluminium roofing — Darley Aluminium Capped Front Glazed systems, 103mm × 50mm and 150mm × 50mm, an adaptable system that allows for flexibility in challenging projects.

The awnings combine both form and function, providing weather protection for visitors and hospitality venues along the promenade, while enhancing the visual appeal of the precinct. A standout feature is the continuous structural rhythm — 360 aluminium top caps and base plates echo the form of the waterfront buildings.

The challenges of the project

The awning system needed to deliver on functionality and practicality while preserving the visual integrity of the architectural design. It had to remain watertight, despite a shallow, almost flat, roof pitch.

The choice of materials was key. Magic Glass carefully selected products — including 13.52mm Clear Fritt Pattern Heat Soaked Toughened Laminated Safety Glass and 6mm colour-back glass — for durability, clarity and the ability to meet the performance and aesthetic demands of the project.

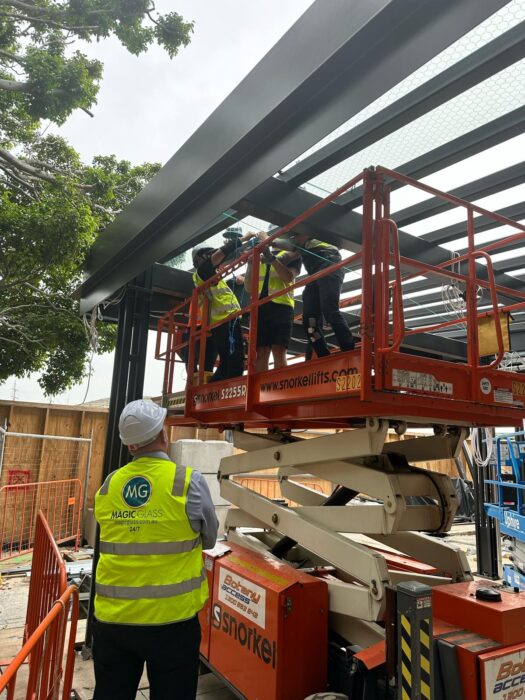

The timeline added a layer of pressure, with the system installed in three stages over just 55 days. Working in a busy public area meant deliveries could only occur after hours, and space for storing materials was extremely limited.
